Inspection, diagnosis and reporting
Measure the system before recommending work.
SPECIALIST MARINE SOLUTION
Marine HVAC
Cooling systems, seawater circuits, controls and performance diagnosis.
MeasuredPressures, temperatures and electrical load
System-wideCooling, water, airflow and controls
DocumentedFindings, recommendations and test results
SYSTEM COVERAGE
Support across the complete system.

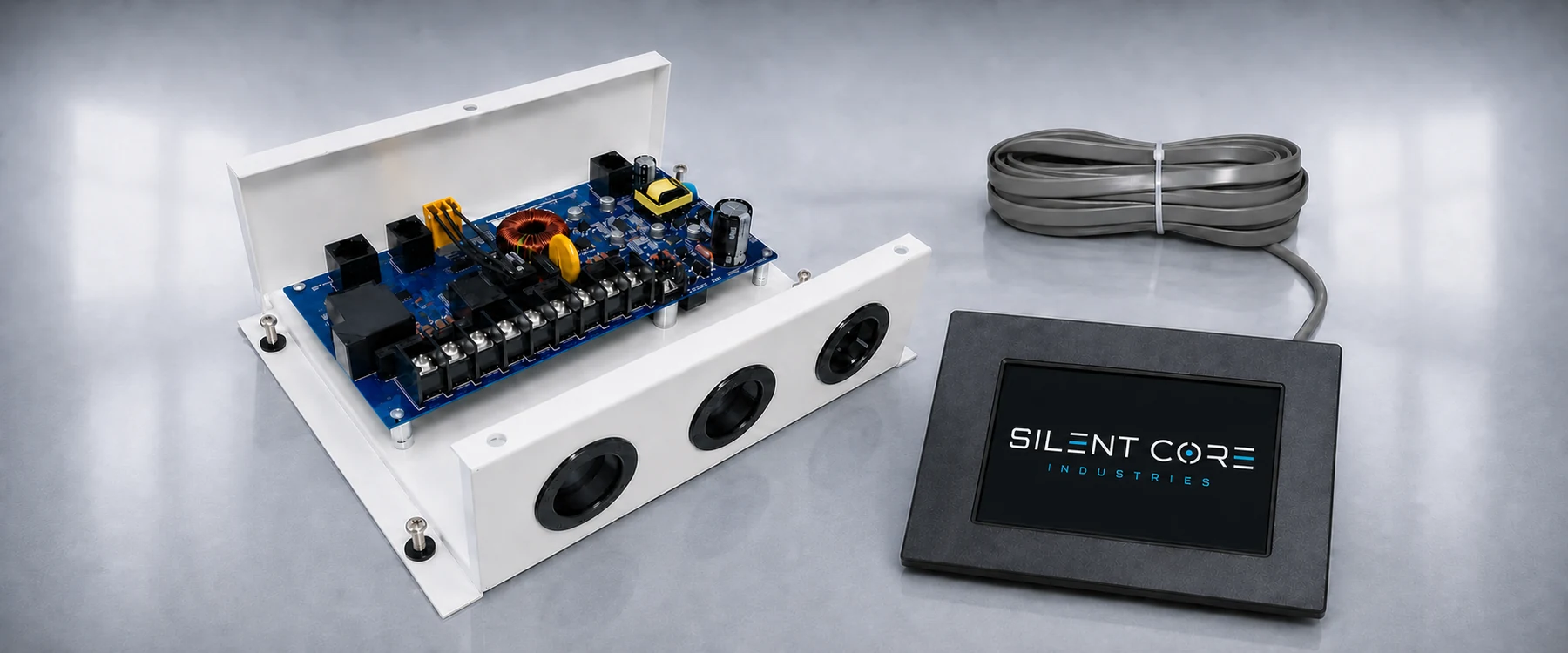

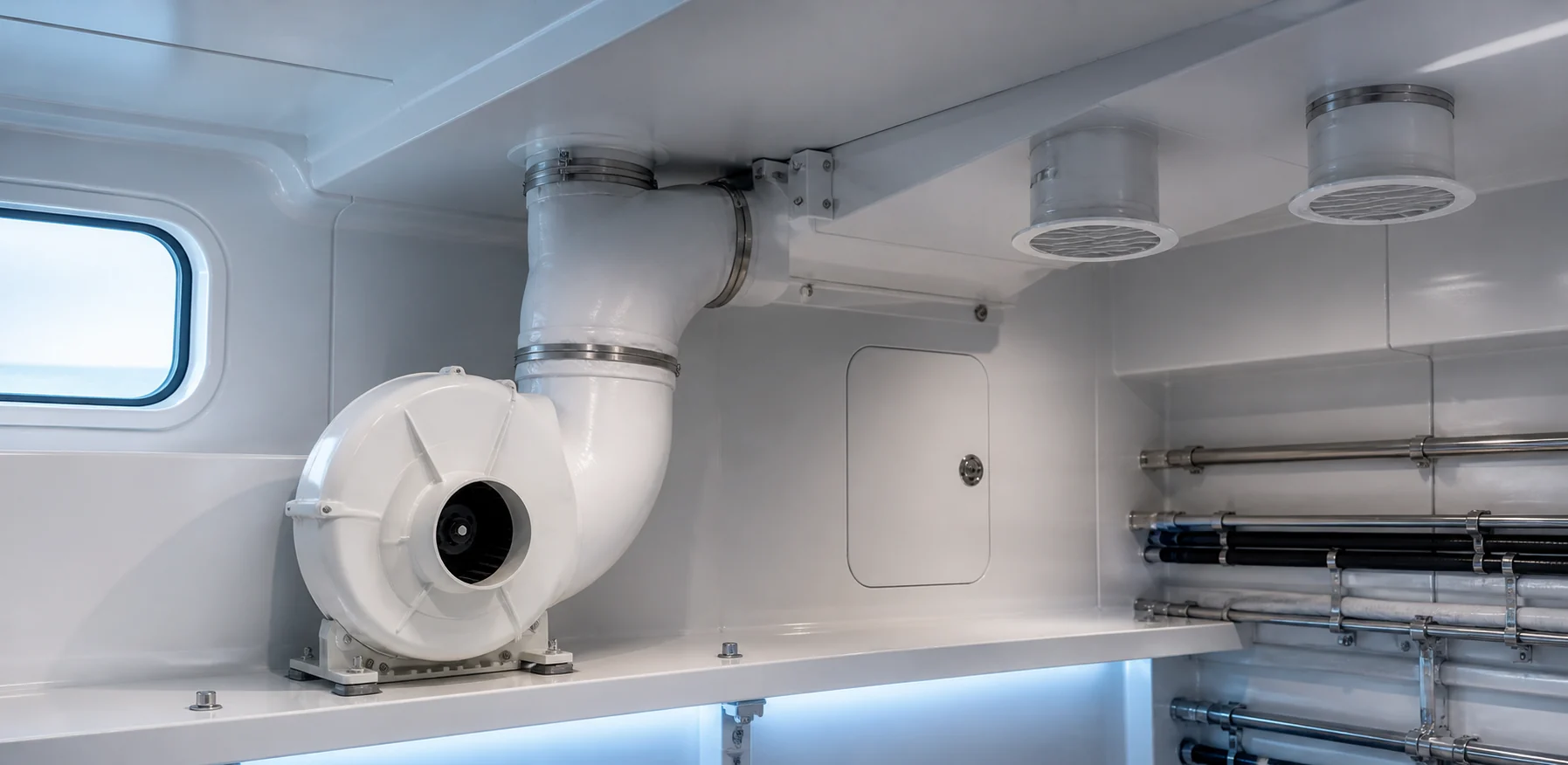

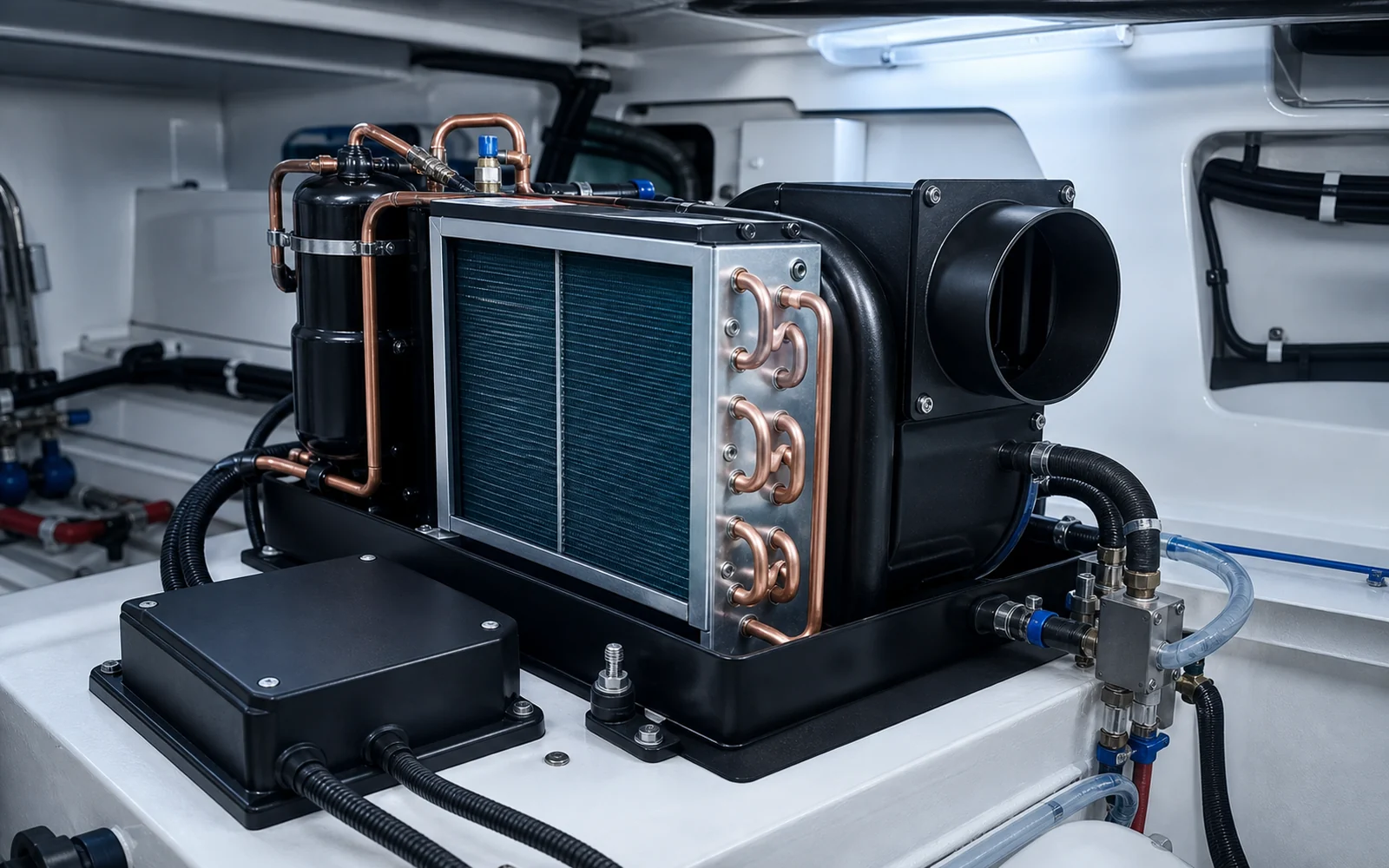

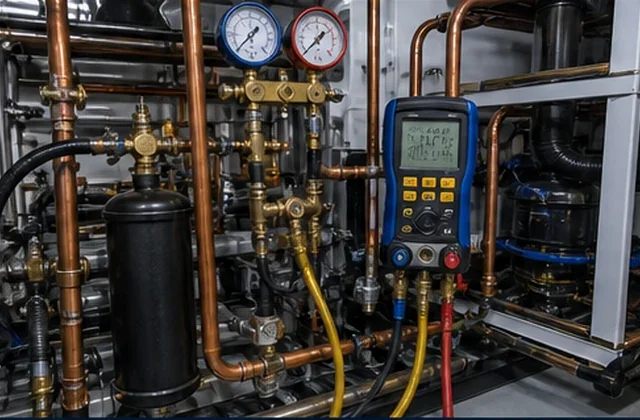

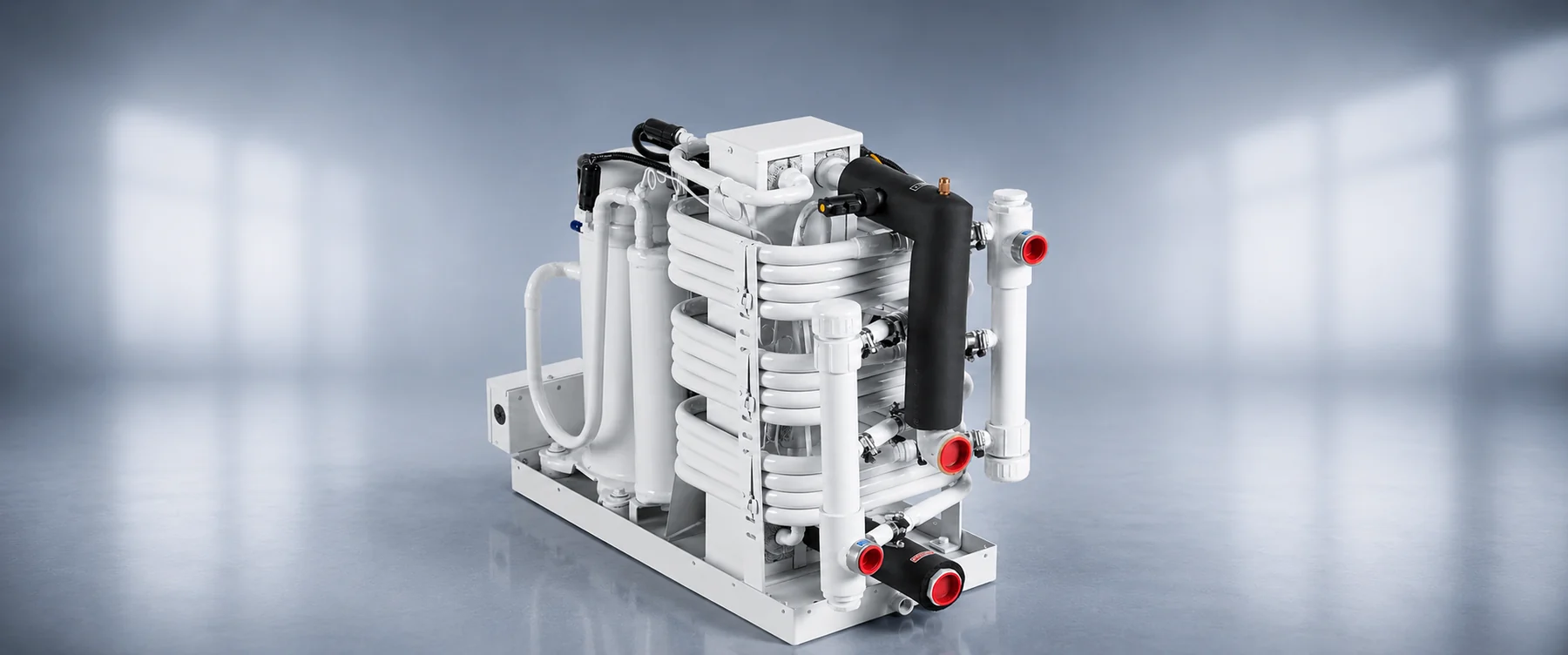

Support for self-contained, fan-coil and air-handler units, chilled-water and split systems, chillers, compressors, ventilation, ducting, condenser descaling, circuit flushing, pumps, strainers, refrigerant-leak detection, control panels, PCB diagnosis and the Climate Care preventive-maintenance program.
INTERACTIVE CONDENSER DIAGRAM
Where heat leaves the system.
Tube-in-tube condenser · unrolled cutaway
← Refrigerant toward expansion deviceHot refrigerant from compressor ←
Seawater inlet →→ Seawater outlet
SeawaterRefrigerantScaleHeat transfer
Simplified section, not an installation drawing. Seawater and refrigerant do not mix.
Heat moves through the metal tube wall into the seawater. The arrows illustrate this transfer; they are not a measured heat-flow rate.
SERVICES WE PROVIDE
From fault finding to verified completion.
Each scope is confirmed against the vessel, system condition and technical evidence before work begins.
Corrective repair
Correct confirmed refrigeration, flow and control faults.

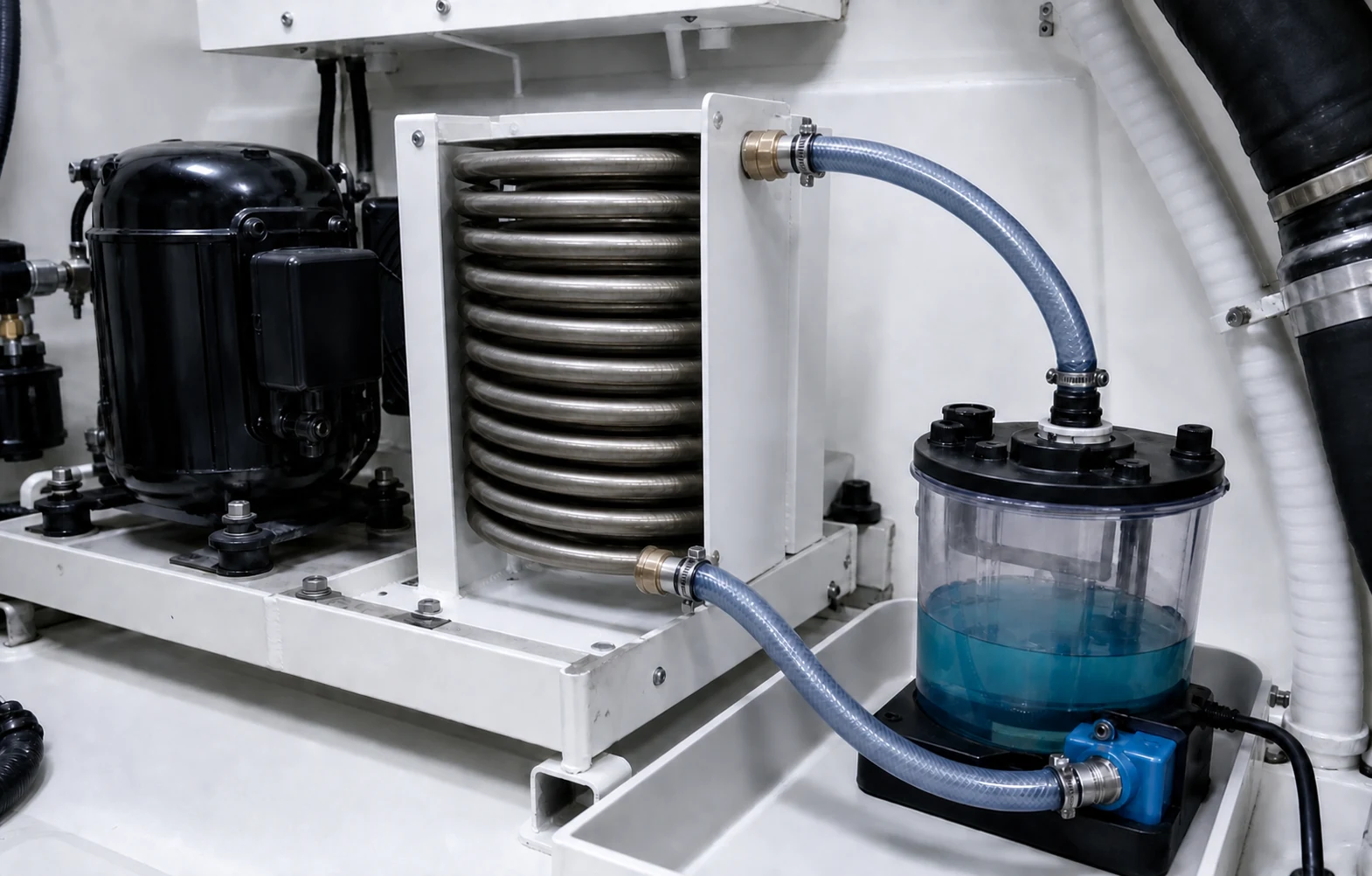

Condenser descaling and circuit flushing
Restore heat transfer through condition-led cleaning.
Major service and overhaul
Rebuild major components only after condition assessment.
Installation and commissioning
Install, commission and verify the complete operating system.
Retrofit and system improvement
Improve aging systems with practical retrofit planning.
System design
Design cooling, piping, airflow and control arrangements.

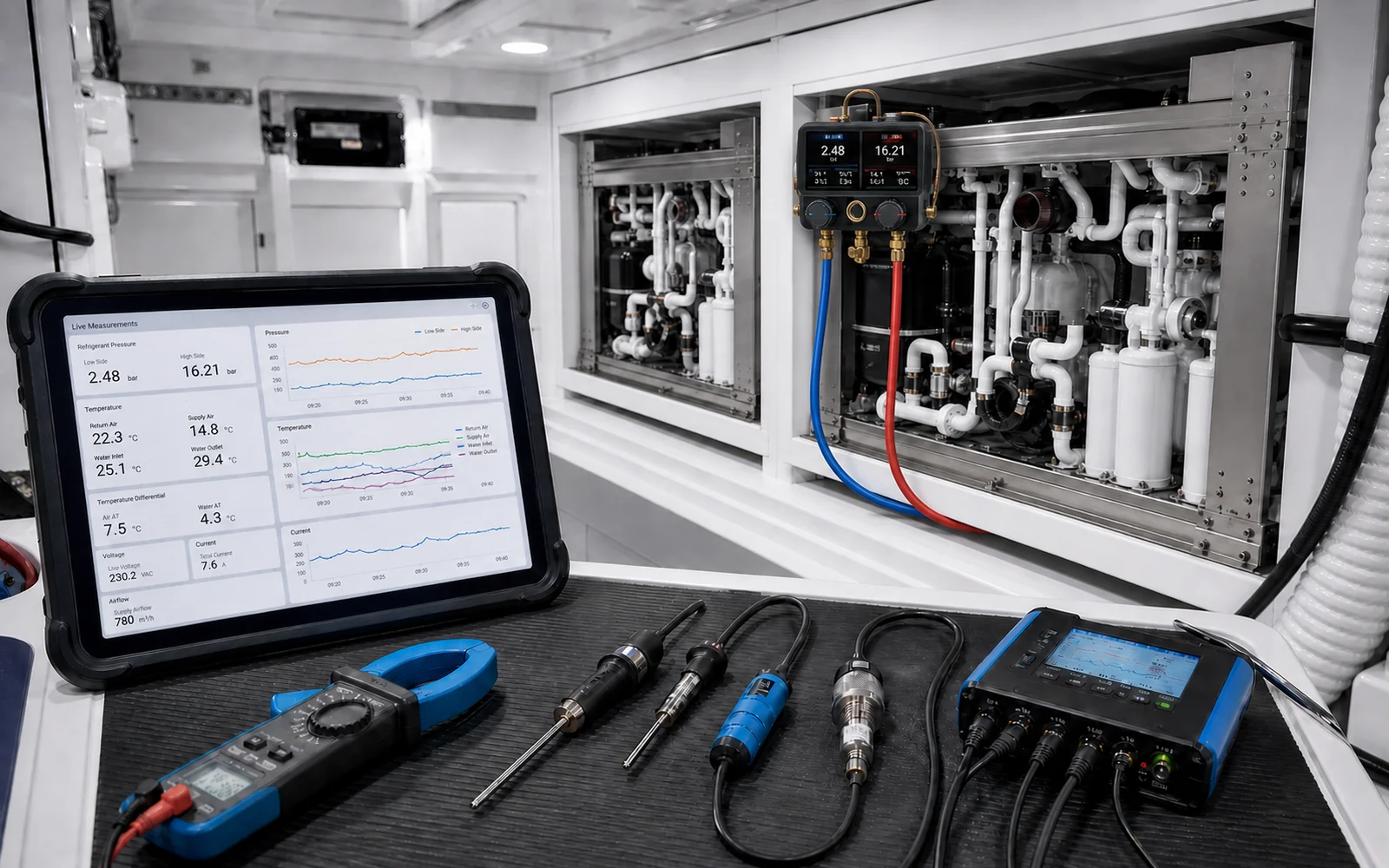

DIAGNOSTIC EVIDENCE
Decisions backed by operating data.
A symptom is the start of the investigation, not the final diagnosis. We compare connected system conditions before recommending a repair.
Typical diagnostic recordPressureRefrigerant circuit TemperatureAir and water delta CurrentElectrical load FlowSeawater and chilled water HistoryAlarms and previous work
Example measurement categories. Actual readings are recorded during the inspection.
Measure
Record the relevant operating conditions.
Compare
Connect readings across the full system.
Document
Explain the finding, risk and recommended scope.
COMMON ISSUES
Similar symptoms can have different causes.
Select a symptom to see what may need to be checked.
No cold air
May relate to airflow, seawater flow, refrigerant condition, compressor operation or control logic. Measurements are required before recommending parts.
Prepare this inquiry
SCI-MHVAC-CASE-001TECHNICAL CASE STUDY
See the evidence behind a real HVAC assessment.
Marine HVAC Condition Assessment
A system-wide inspection of weak and uneven cooling. Refrigerant, electrical, water-side and air-side evidence was assessed together before the repair scope was set.
- 108,000
- BTU/h central chiller
- 3
- Compressor circuits
- 12
- FCUs reported

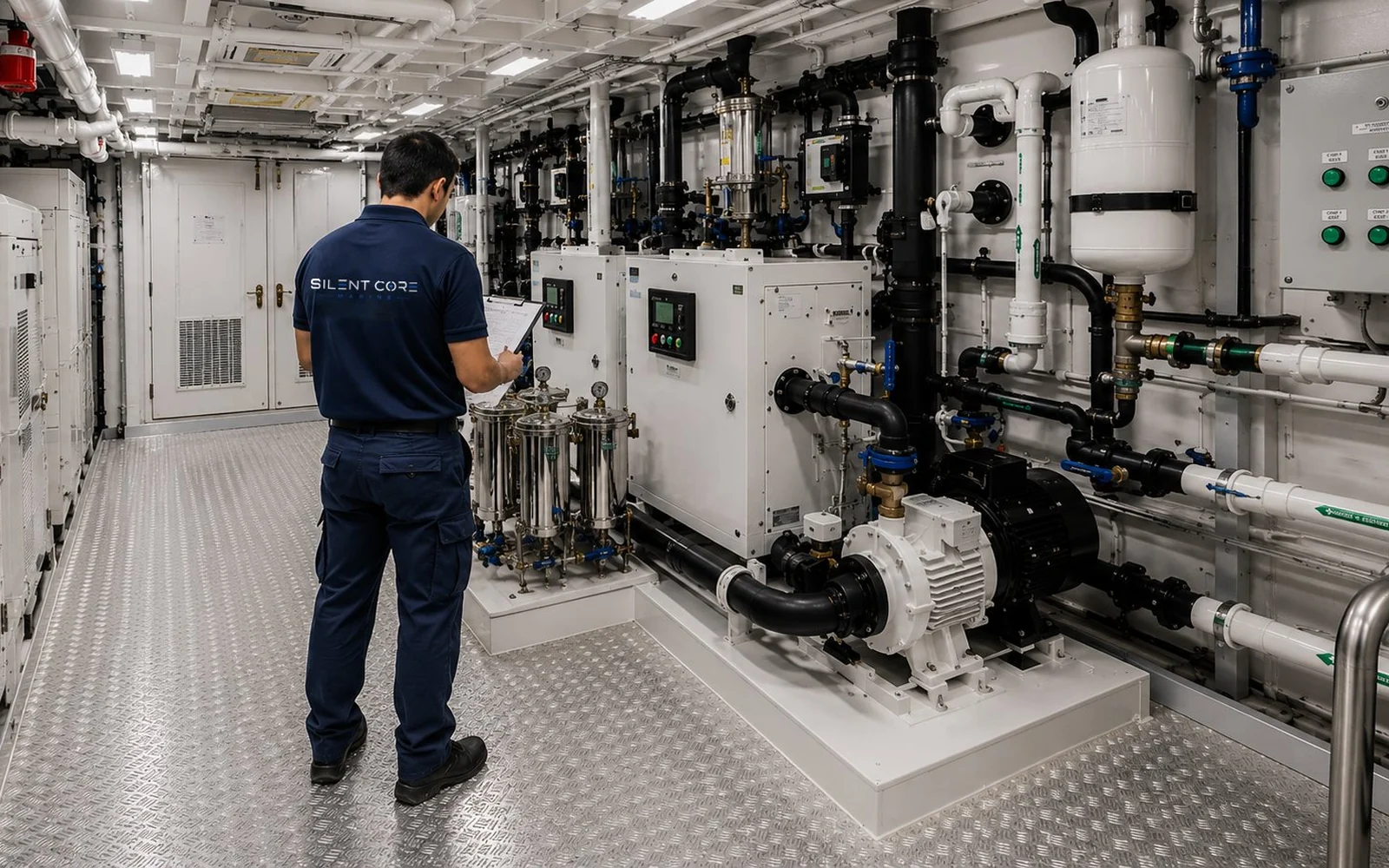

MARINE HVAC / CLIMATE CARE
Planned visits. One continuous service record.
A 12-month preventive-maintenance program with service frequencies selected to match the vessel and its HVAC configuration.
Explore Climate Care ↗Scheduled visits matched to the selected planRecorded operating measurementsCondenser, flow and electrical checksUp to 15% off approved repair labor
PREPARE THE INQUIRY
Give the team useful evidence before the visit.
Share the HVAC equipment type, manufacturer and model, controller or alarm display, symptoms, recent work and clear photographs of the unit and nameplate.
Request an inquiry ↗hamza.a@silentcoreindustries.comGuidance and image review are preliminary. Final diagnosis, price and recommendations may require physical inspection.
